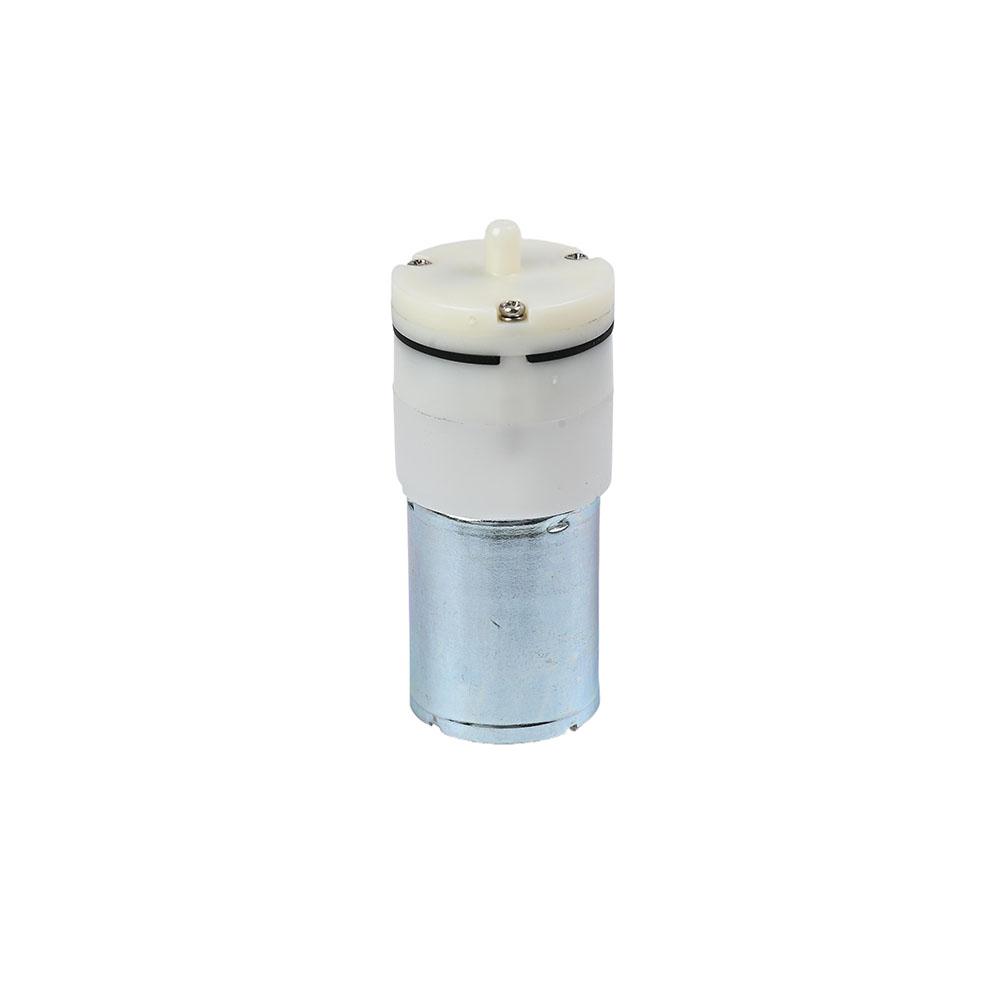

A100 Micro Air Pump
A100 micro air pump with five configurations in the supplied sheet, covering DC 3 V, 6 V, 12 V, 24 V and a separately listed DC 3–24 V configuration. Select using the configuration table.
MODEL / A100
A100 Micro Air Pump
A100 micro air pump with five configurations in the supplied sheet, covering DC 3 V, 6 V, 12 V, 24 V and a separately listed DC 3–24 V configuration. Select using the configuration table.
The Chinese application text in the supplied Qingdao Ahead Electric sheet lists electronic blood pressure monitors, memory pillows, breathing machines, inflatable shoes and atomizers. The English application text differs; confirm intended use before selection.
Technical specifications
| Rated voltage | Working current | Inflation time | Flow | Pressure | Noise | Life |
|---|---|---|---|---|---|---|
| DC 3.0 V | ≤600 mA | ≤10 s | 1–3 L/min | ≥100 kPa | ≥40 dB | ≥600 h |
| DC 6.0 V | ≤430 mA | ≤10 s | 1–3 L/min | ≥100 kPa | ≥40 dB | ≥600 h |
| DC 12.0 V | ≤230 mA | ≤10 s | 1–3 L/min | ≥100 kPa | ≥40 dB | ≥600 h |
| DC 24.0 V | ≤200 mA | ≤10 s | 1–3 L/min | ≥100 kPa | ≥40 dB | ≥600 h |
| DC 3–24.0 V | ≤600 mA | ≤10 s | 1.5–2 L/min | ≥100 kPa | ≥40 dB | 1000–1500 h |
Values and inequality signs, including noise ≥40 dB, are retained from the original sheet. Inflation volume and target pressure, noise measurement conditions and lifetime test conditions are unspecified. The final DC 3–24 V row is listed separately and does not establish that all configurations support this voltage range. The curve axis is labeled negative pressure (mmHg), while the table states pressure ≥100 kPa; the relationship and curve configuration require confirmation. Flow and pressure do not establish a simultaneous operating point.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawing below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
Contact us for specifications.
Protection functions
Contact us for specifications.
Applications
Technical documents

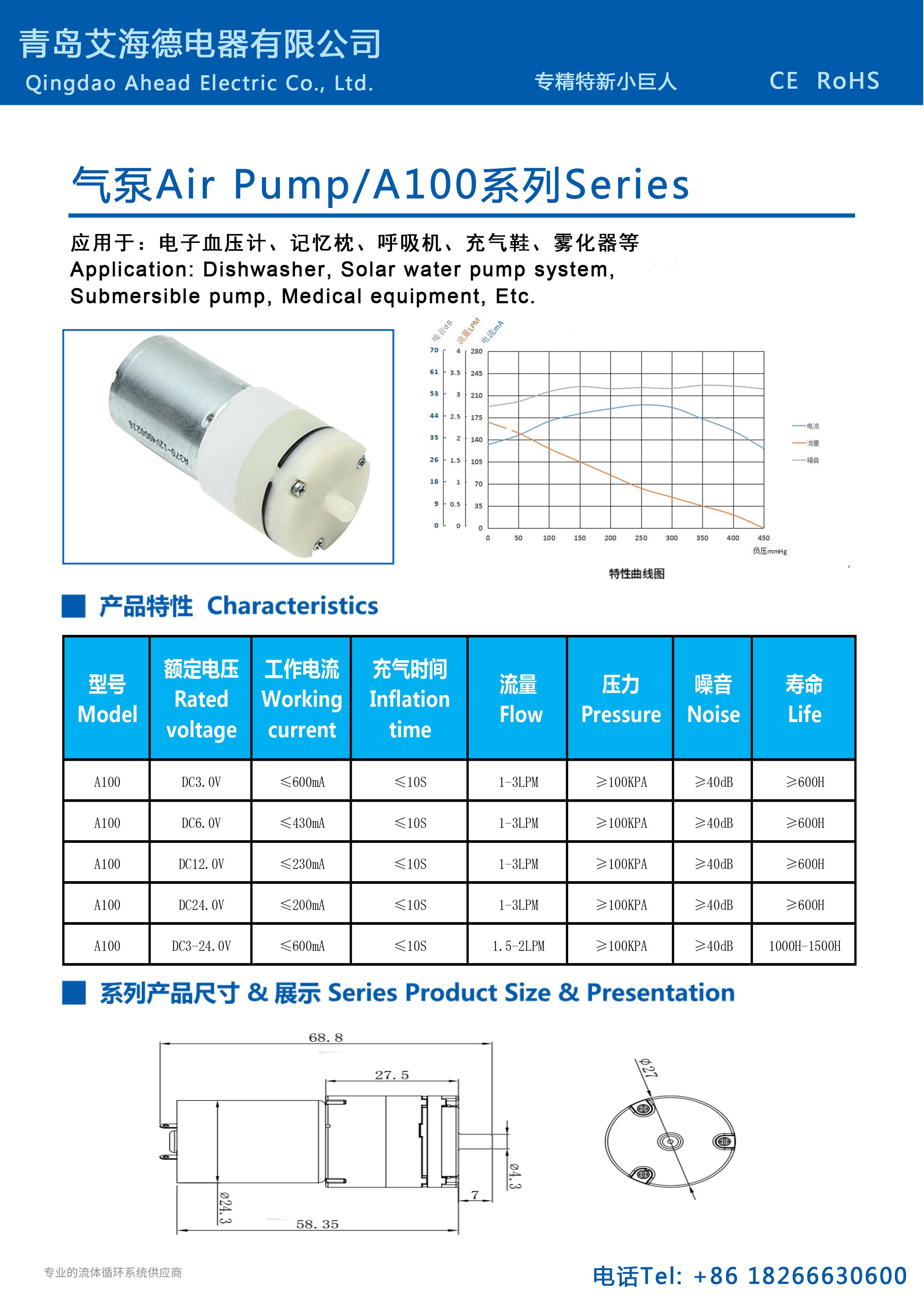

Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
