SHAN NENG / products
Products
Products from Shan Neng. Explore micro pumps, fluid control, engineering requirements and OEM / ODM project support.

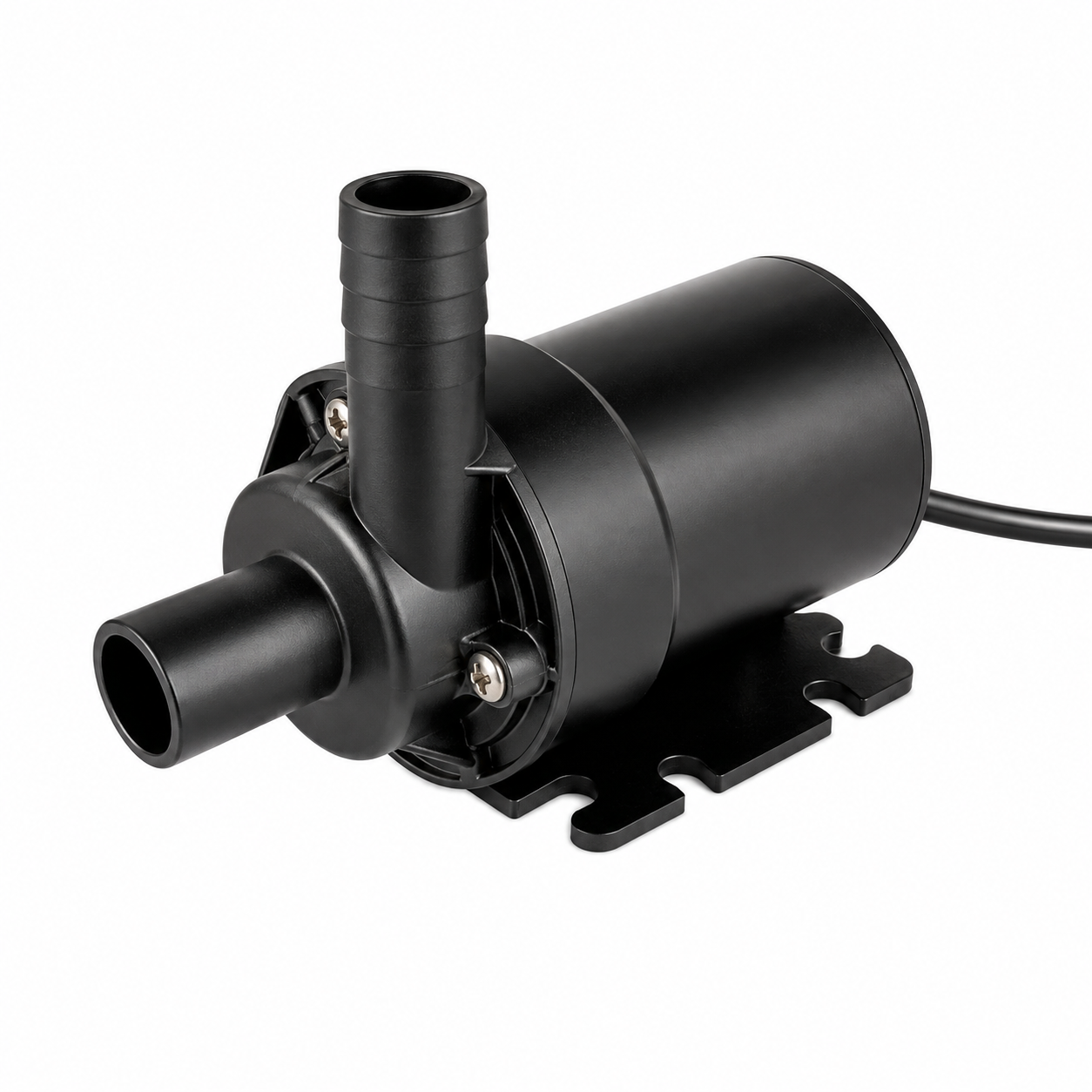

AW500 DC Water Pump
AW500 micro water pump with hose connections. Five configurations cover DC 6 V, 12 V and 24 V; select using the configuration table.

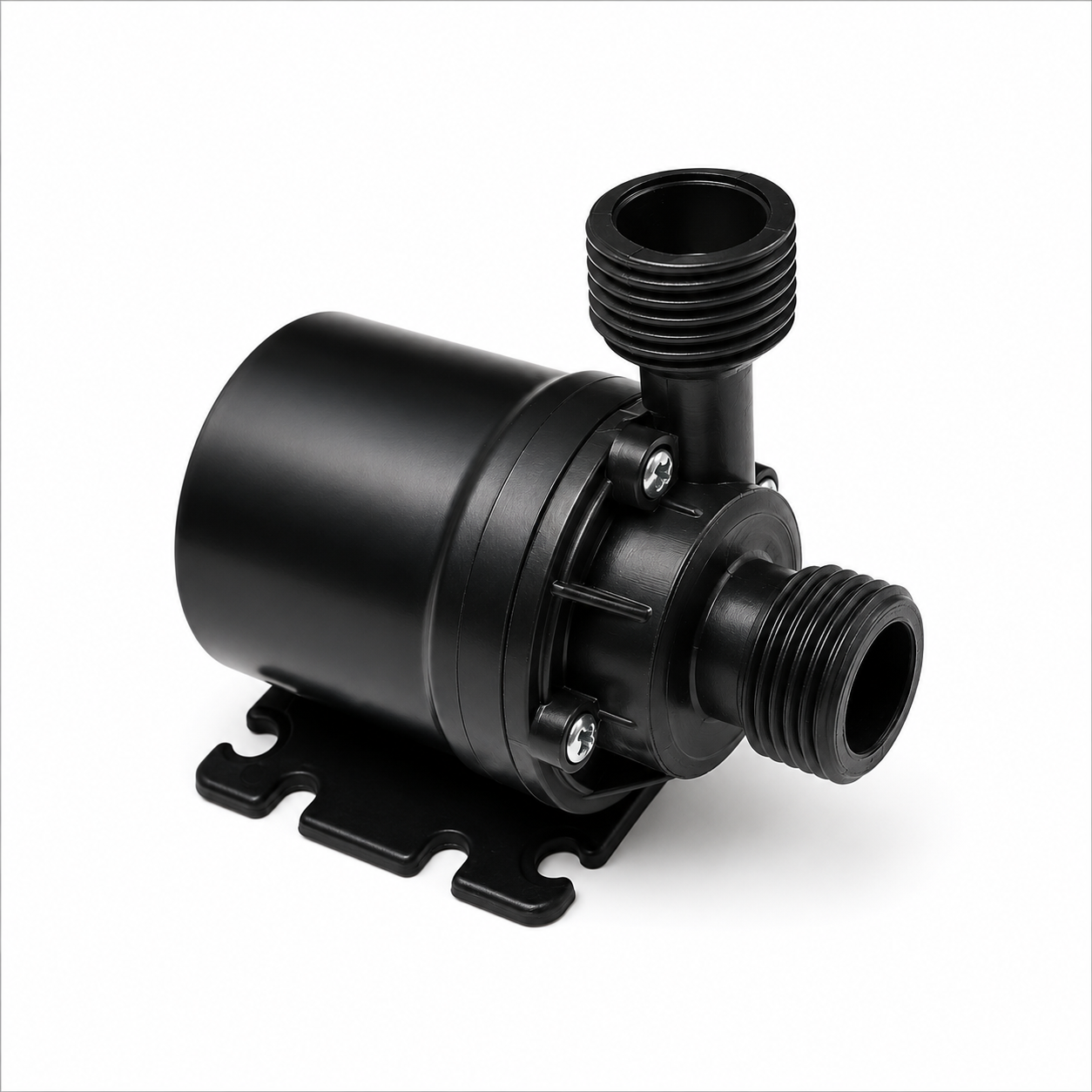

AW500S DC Water Pump
AW500S micro water pump with threaded connections. Five configurations cover DC 6 V, 12 V and 24 V; select using the configuration table.

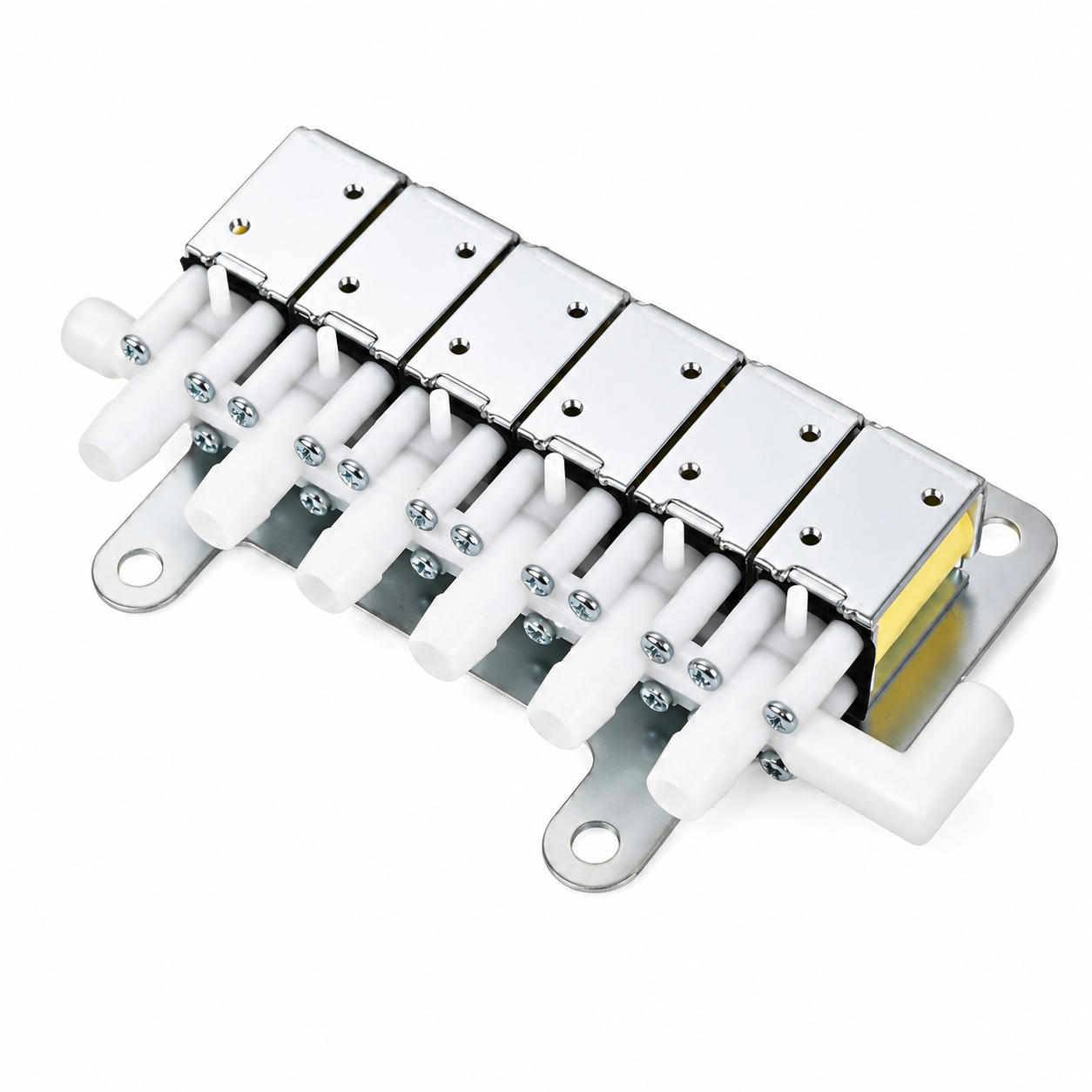

ASV600 Micro Solenoid Valve
ASV600 solenoid valve assembly with DC 12 V and 24 V configurations. View the supplied electrical specifications, exhaust specification and dimension drawings.

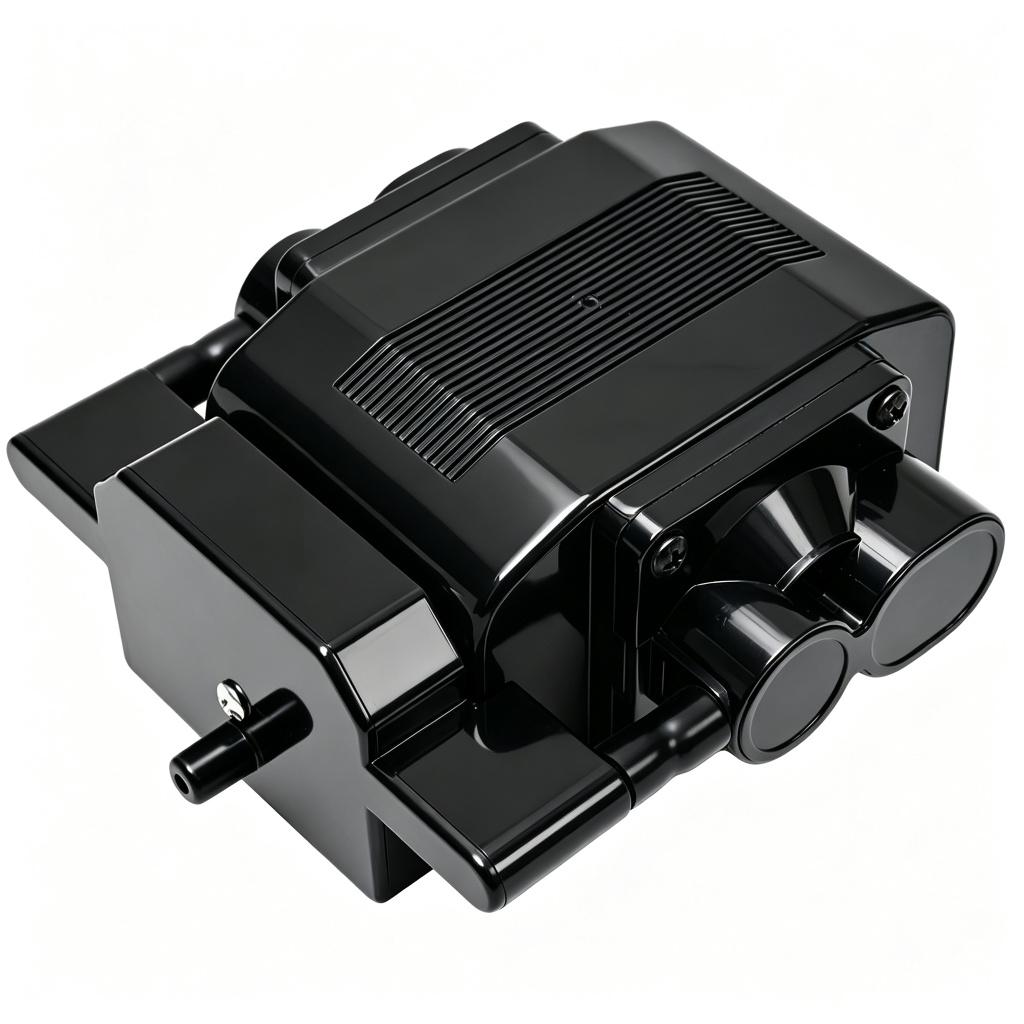

AMP50H Electromagnetic Air Pump
AMP50H micro air pump with DC 24 V, AC 110 V and AC 220 V configurations. The supplied sheet lists 16 W power and a pressure specification of ≥25 kPa.

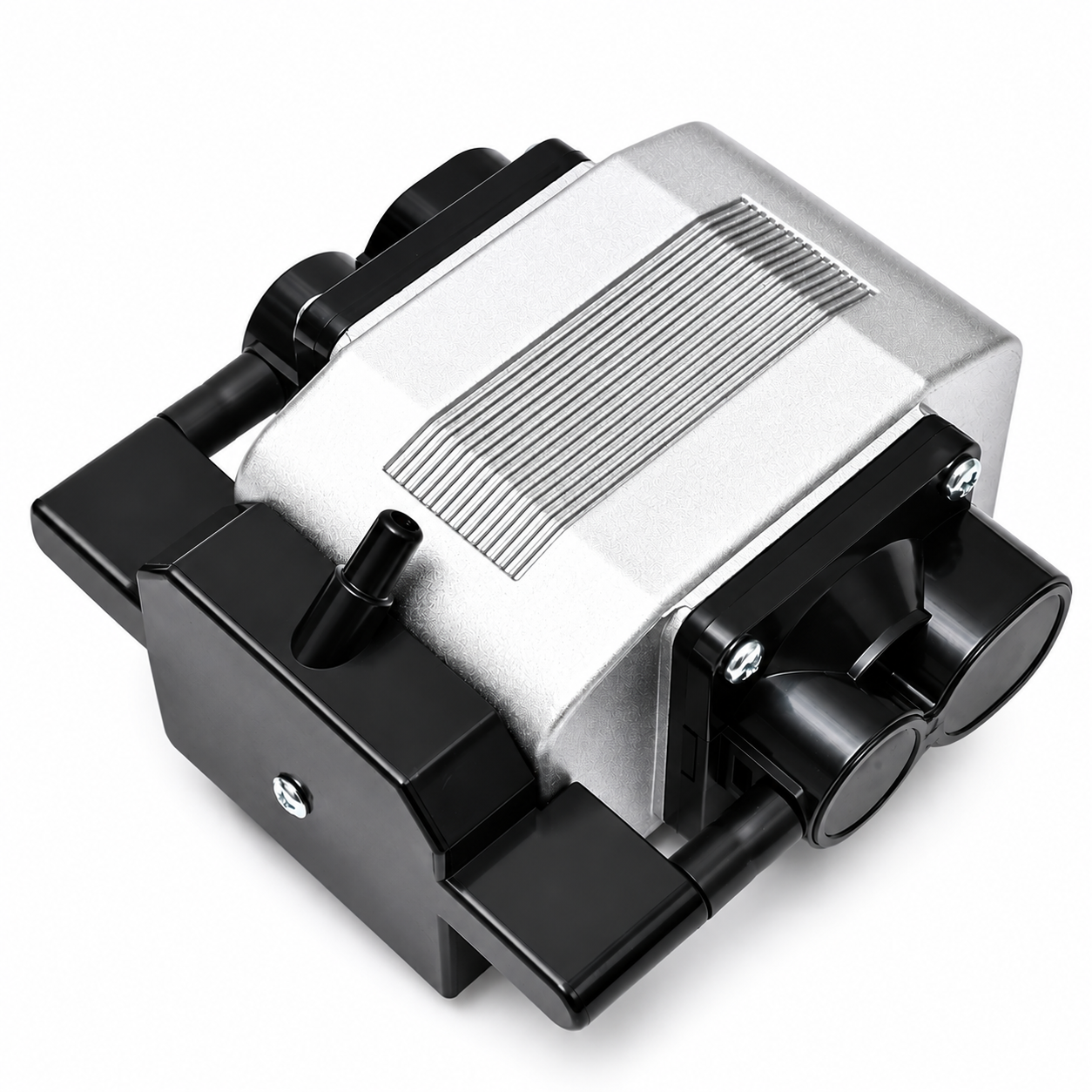

AMP503 Electromagnetic Air Pump
AMP503 micro air pump with DC 24 V, AC 110 V and AC 220 V configurations. The supplied sheet lists 16 W power and a pressure specification of ≥25 kPa.
AW62P Self-priming Water Pump
AW62P micro water pump with DC 3 V, 6 V, 12 V and 24 V configurations. The supplied sheet lists 5 W power and flow ≥900 mL/min.
A100 Micro Air Pump
A100 micro air pump with five configurations in the supplied sheet, covering DC 3 V, 6 V, 12 V, 24 V and a separately listed DC 3–24 V configuration. Select using the configuration table.
AMP50H1 Electromagnetic Air Pump
AMP50H1 micro air pump. The supplied AMP50H-series sheet lists DC 24 V, AC 110 V and AC 220 V configurations, 16 W power and flow >20 L/min.
AW500UL DC Water Pump
AW500UL micro water pump with four configurations covering DC 6 V, 12 V and 24 V. Select flow and head using the configuration table.
AW62PB DC Water Pump
AW62PB micro water pump with DC 3 V, 6 V, 12 V and 24 V configurations. The supplied sheet lists 5 W power and flow ≥900 mL/min.
AW100 DC Water Pump
AW100 micro water pump with DC 6 V and DC 12 V configurations. The supplied sheet lists 150 L/h flow, 0.5–1 m head and 3 W power.
AW1000 DC Water Pump
AW1000 micro water pump with DC 12 V and DC 24 V configurations. The supplied table lists 60 W power, 1000–1200 L/h flow and 12–15 m head.
AW500-537 DC Water Pump
AW500-537 micro water pump with DC 12 V and DC 24 V configurations, 4 L/min open flow and 0.6 MPa / 87 psi limiting pressure.
A140 Micro Air Pump
A140 micro air pump with DC 6 V, 12 V and 24 V configurations. The supplied sheet lists 3–7 L/min flow and inflation time ≤10 s.
A031 Micro Air Pump
A031 micro air pump with DC 3 V, 6 V, 9 V, 12 V and 24 V configurations. The supplied sheet lists flow >0.5 L/min and pressure >50 kPa.
Micro Water Pumps
Move, circulate and deliver water in compact equipment. Start with the flow required at your actual system head.
Micro Air Pumps
Supply pressure or vacuum for pneumatic systems. Compare flow at working pressure, duty cycle and acoustic conditions.
Solenoid Valves
Control fluid and air paths. Define the medium, pressure range, default state and electrical interface before selection.
The product catalog will expand as approved model information becomes available. Send your requirements for an engineering review.
LET’S DEFINE THE RIGHT FIT
Your application. Our next conversation.
Share the flow, pressure and space your design needs.
