AW1000 DC Water Pump

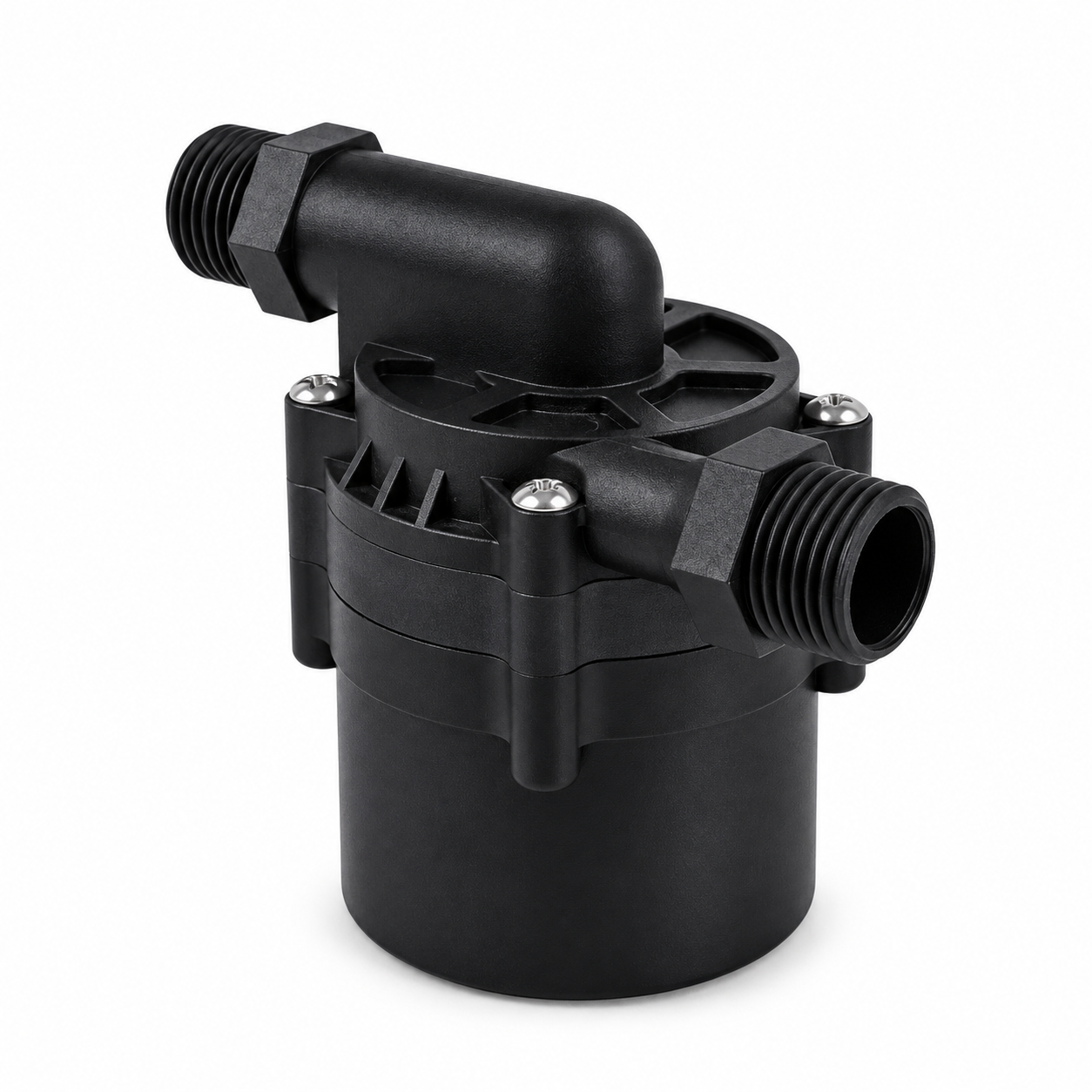

AW1000 micro water pump with DC 12 V and DC 24 V configurations. The supplied table lists 60 W power, 1000–1200 L/h flow and 12–15 m head.
MODEL / AW1000
AW1000 DC Water Pump
AW1000 micro water pump with DC 12 V and DC 24 V configurations. The supplied table lists 60 W power, 1000–1200 L/h flow and 12–15 m head.
The supplied Qingdao Ahead Electric datasheet lists dishwashers, solar water pump systems, submersible pumps and medical equipment as applications. Confirm installation conditions and application suitability before selection.
Technical specifications
| Voltage | Power | Flow | Head | Noise | Life |
|---|---|---|---|---|---|
| DC 12.0 V | 60 W | 1000–1200 L/h | 12–15 m | ≥40 dB | >20,000 h |
| DC 24.0 V | 60 W | 1000–1200 L/h | 12–15 m | ≥40 dB | >20,000 h |
Values and inequality signs are retained from the original table, including noise ≥40 dB. The table lists 12–15 m head, while the supplied series curve reaches zero flow at approximately 12 m; the corresponding configuration and test conditions require confirmation. Current, noise measurement conditions and lifetime test conditions are unspecified. Flow and head are not simultaneous guaranteed operating points.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | G1/2 pipe threads, as labeled in the drawing |
| Dimensions | See the original dimension drawings below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
Contact us for specifications.
Protection functions
Contact us for specifications.
Applications
Technical documents

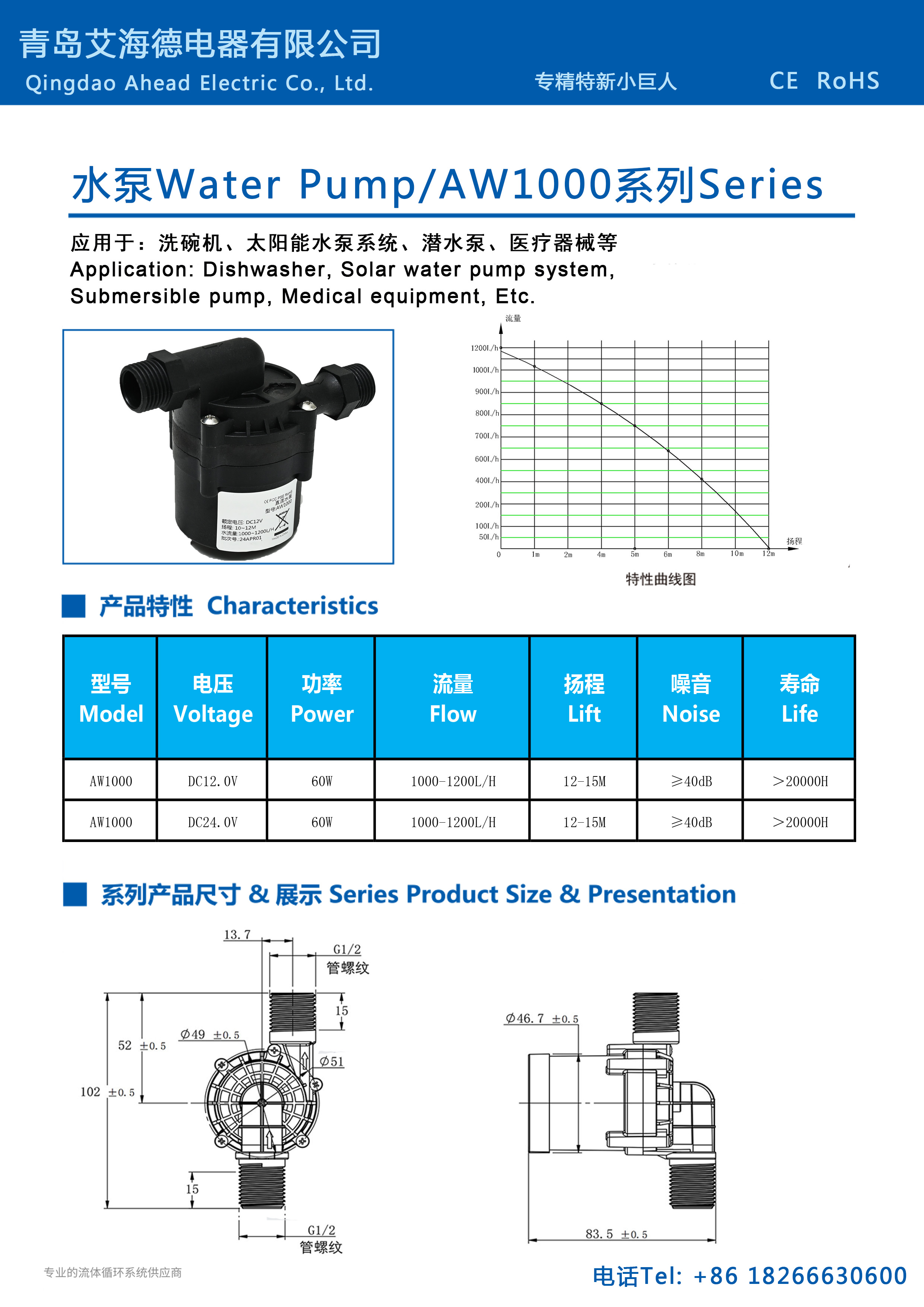

Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
