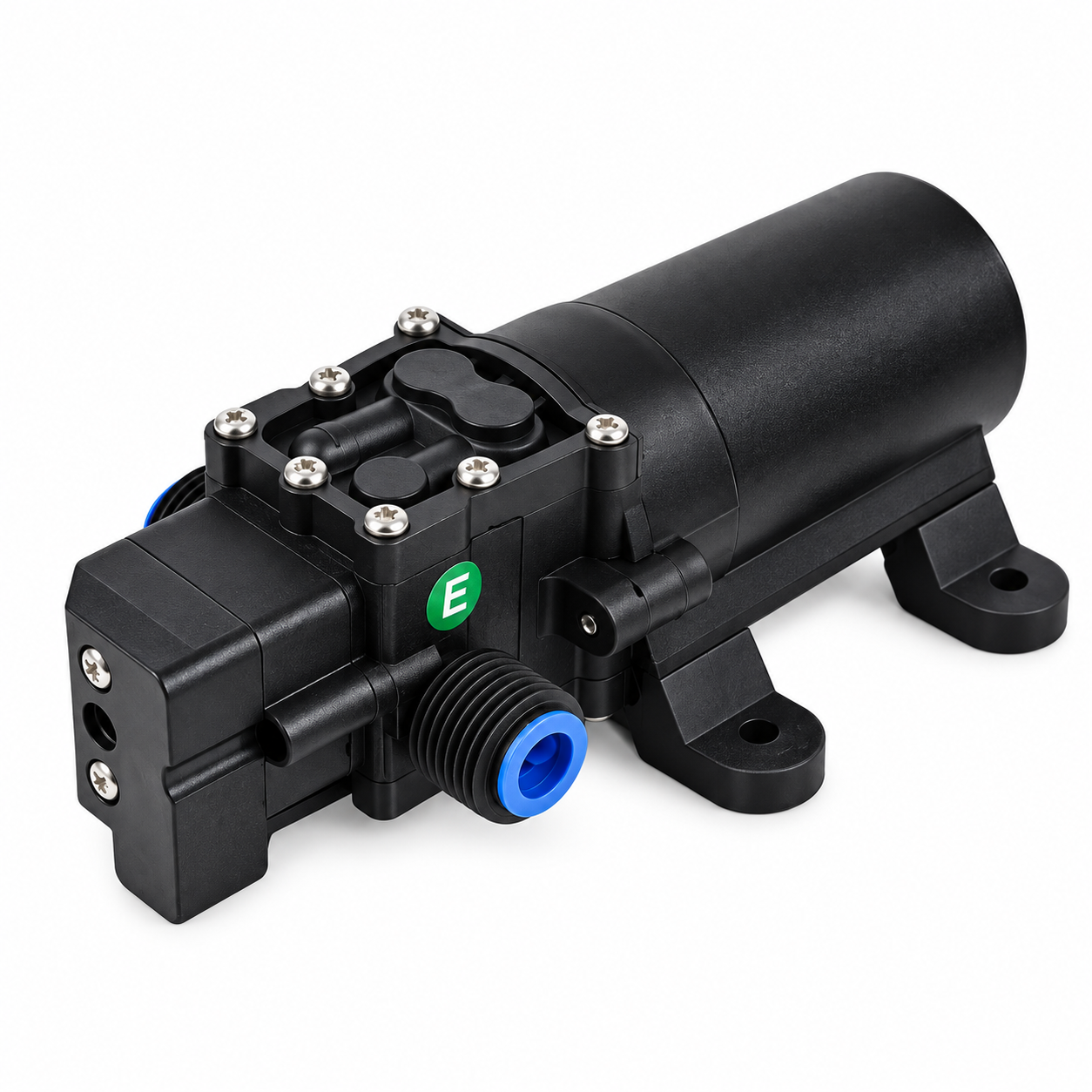

AW500-537 DC Water Pump
AW500-537 micro water pump with DC 12 V and DC 24 V configurations, 4 L/min open flow and 0.6 MPa / 87 psi limiting pressure.
MODEL / AW500-537
AW500-537 DC Water Pump
AW500-537 micro water pump with DC 12 V and DC 24 V configurations, 4 L/min open flow and 0.6 MPa / 87 psi limiting pressure.
The supplied Qingdao Ahead Electric datasheet lists coffee machines, water dispensers, water purifiers, electric kettles and pet fountains as applications.
Technical specifications
| Voltage | Current | Open flow | Limiting pressure | Pressure control | Noise | Life |
|---|---|---|---|---|---|---|
| DC 12.0 V | ≤3 A | 4 L/min | 0.6 MPa / 87 psi | 回流 / 自动断电 · Reflux / Switch off | ≥40 dB | >50,000 cycles |
| DC 24.0 V | ≤3 A | 4 L/min | 0.6 MPa / 87 psi | 回流 / 自动断电 · Reflux / Switch off | ≥40 dB | >50,000 cycles |
Values and inequality signs are retained from the original sheet, including noise ≥40 dB. Life is specified as >50000Times (cycles), not hours. Open flow and limiting pressure are separate ratings, not a simultaneous operating point. The sheet lists reflux and automatic switch-off for pressure control; confirm the required configuration when ordering. Noise and life test conditions are unspecified.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawing below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
Contact us for specifications.
Protection functions
Contact us for specifications.
Applications
Technical documents

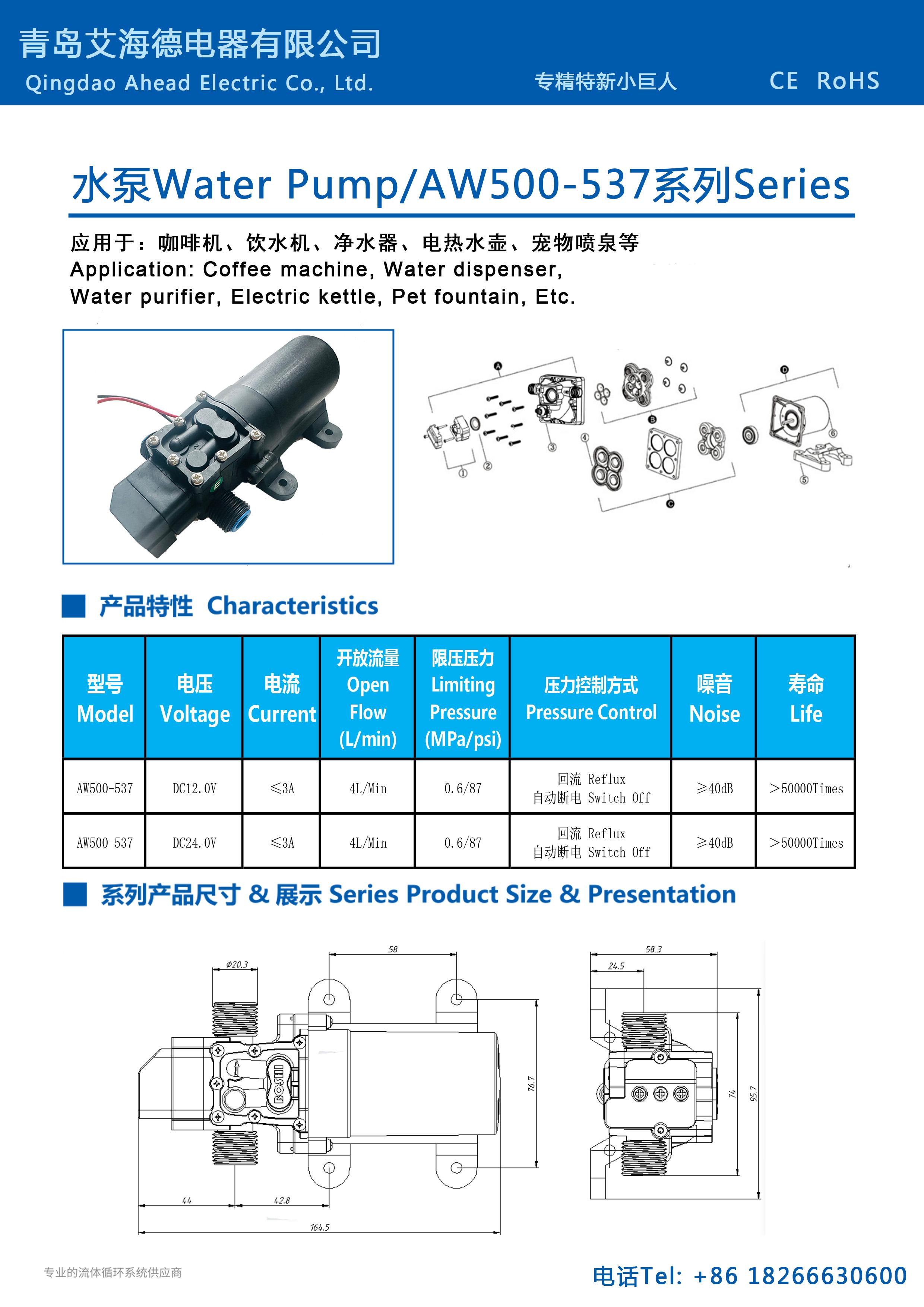

AW500-537 original datasheet (JPG) — Qingdao Ahead Electric ↓
Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
