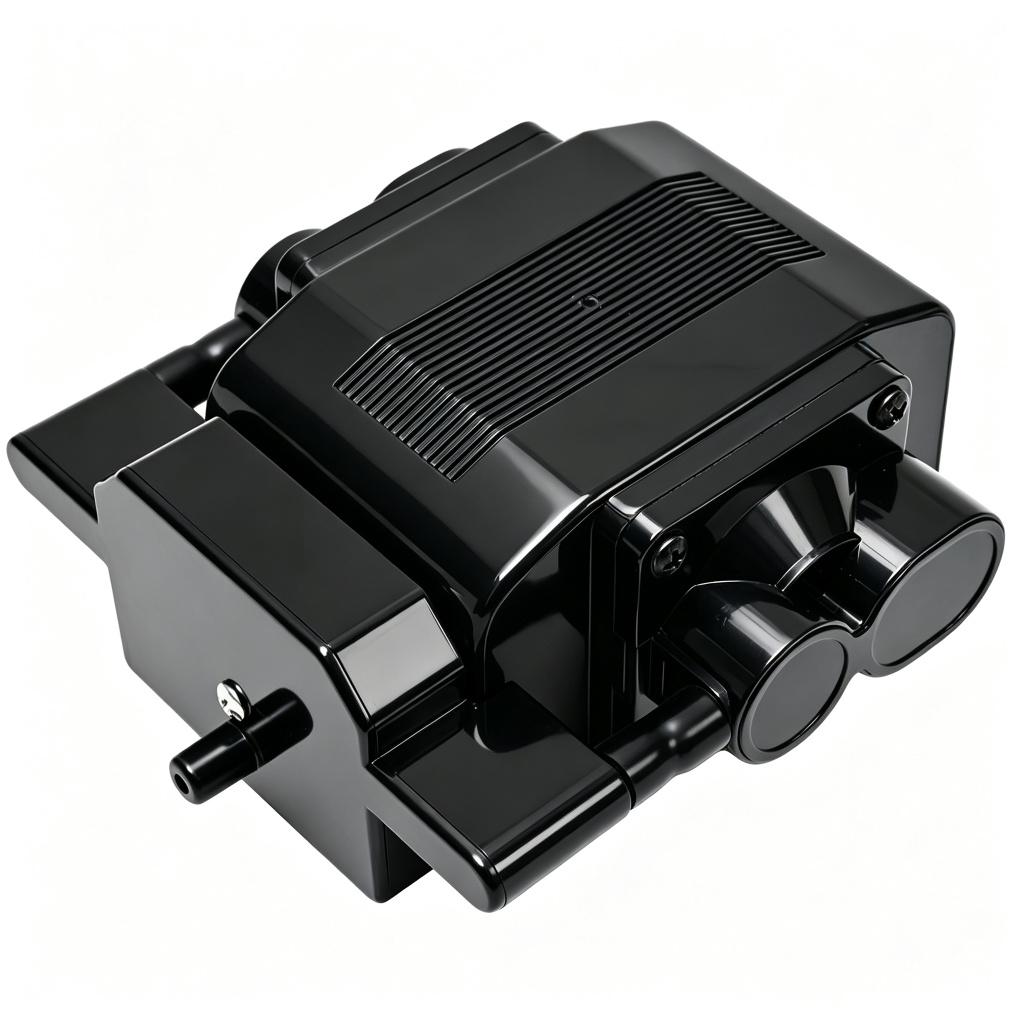

AMP50H1 Electromagnetic Air Pump
AMP50H1 micro air pump. The supplied AMP50H-series sheet lists DC 24 V, AC 110 V and AC 220 V configurations, 16 W power and flow >20 L/min.
MODEL / AMP50H1
AMP50H1 Electromagnetic Air Pump
AMP50H1 micro air pump. The supplied AMP50H-series sheet lists DC 24 V, AC 110 V and AC 220 V configurations, 16 W power and flow >20 L/min.
Listed as AMP50H1 as supplied by the customer. The original document is titled AMP50H Series and its table identifies AMP50H. The supplied sheet lists medical massage equipment, medical atomizers, diffusers, air mattresses and massage chairs. Confirm the specific configuration when ordering.
Technical specifications
| Rated voltage | Working current | Power | Flow | Pressure | Noise | Life |
|---|---|---|---|---|---|---|
| DC 24 V | ≤1700 mA | 16 W | >20 L/min | ≥25 kPa | ≥40 dB | ≥10,000 h |
| AC 110 V | ≤300 mA | 16 W | >20 L/min | ≥25 kPa | ≥40 dB | ≥10,000 h |
| AC 220 V | ≤200 mA | 16 W | >20 L/min | ≥25 kPa | ≥40 dB | ≥10,000 h |
Transcribed from the customer-supplied AMP50H1.jpg document, whose internal model is AMP50H. All inequality signs, including noise ≥40 dB, are retained. AC frequency, noise and lifetime test conditions, and the configuration used for the series curve are unspecified. Flow and pressure are not guaranteed simultaneous operating points.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawings below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
Contact us for specifications.
Protection functions
Contact us for specifications.
Applications
Technical documents

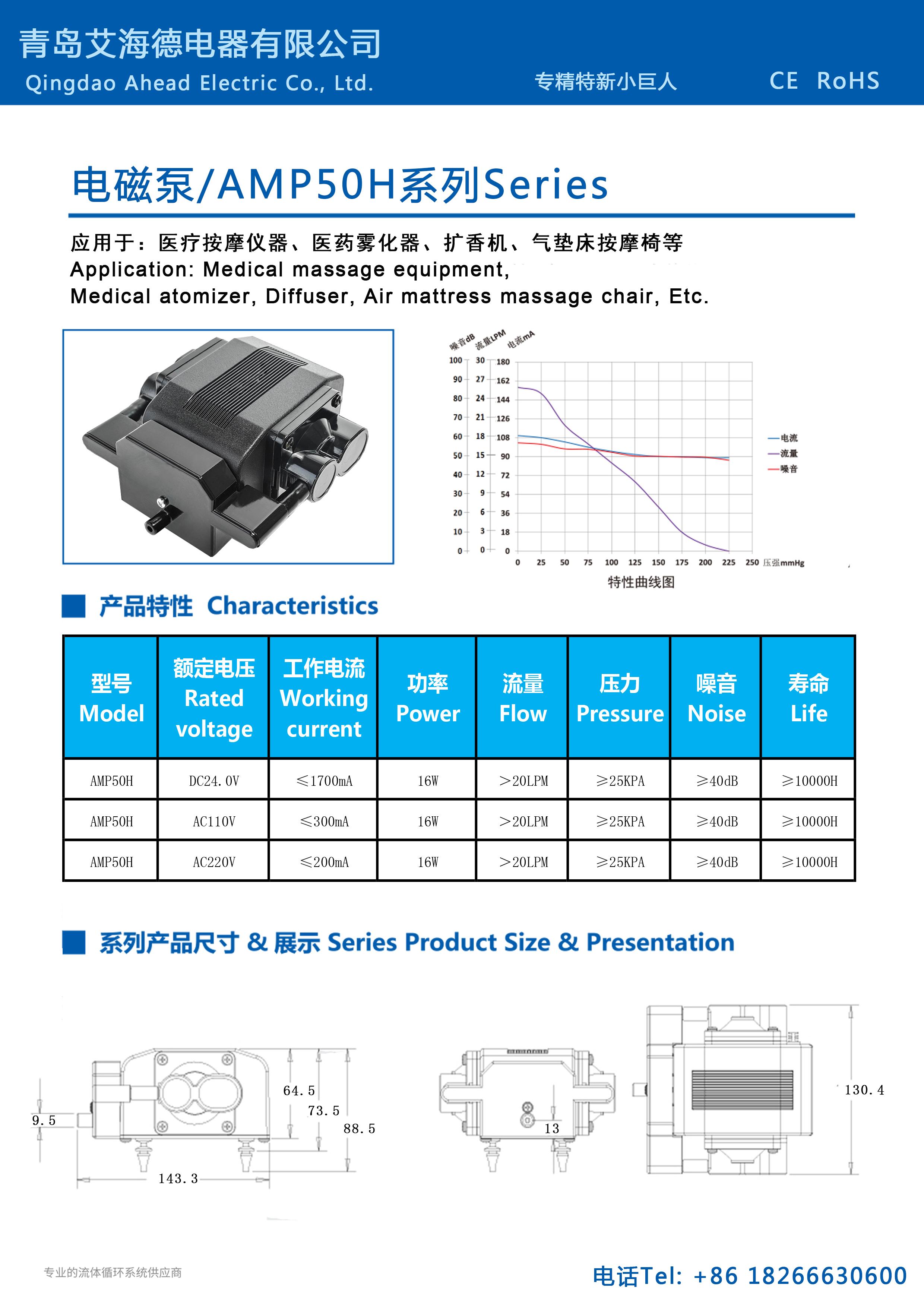

AMP50H1 supplied datasheet (JPG) — AMP50H series, Qingdao Ahead Electric ↓
Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
