AW500 DC Water Pump
AW500 micro water pump with hose connections. Five configurations cover DC 6 V, 12 V and 24 V; select using the configuration table.
MODEL / AW500
AW500 DC Water Pump
AW500 micro water pump with hose connections. Five configurations cover DC 6 V, 12 V and 24 V; select using the configuration table.
The supplied Shan Neng datasheet lists shower, solar energy systems, aquarium pumps and medical equipment as applications. Confirm the working point and system requirements for the chosen configuration.
Technical specifications
| Voltage | Current | Power | Flow | Head | Noise | Life |
|---|---|---|---|---|---|---|
| DC 6.0 V | 1100 mA | 6 W | 300–500 L/h | 2.5–3.5 m | ≤40 dB | >20,000 h |
| DC 12.0 V | 600 mA | 7 W | 300–500 L/h | 2.5–3.5 m | ≤40 dB | >20,000 h |
| DC 12.0 V | 1580 mA | 19 W | 600–800 L/h | 4–6 m | ≥35 dB | >20,000 h |
| DC 24.0 V | 400 mA | 5 W | 350 L/h | 1.5–2 m | ≥35 dB | >20,000 h |
| DC 24.0 V | 920 mA | 22 W | 600–800 L/h | 4–6 m | ≥35 dB | >20,000 h |
Values are transcribed from the supplied datasheet. Noise is written as ≤40 dB in the first two rows and ≥35 dB in the last three; these signs are retained and need confirmation. Noise and lifetime test conditions are not provided. Flow and head ranges are not simultaneous guaranteed operating points. The sheet provides one series curve without identifying the configuration.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Hose connections; see the dimension drawing |
| Dimensions | See the original dimension drawing below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
- Hose inlet and outlet connections.
- Five electrical configurations are listed in the supplied sheet.
Protection functions
Contact us for specifications.
Applications
Technical documents

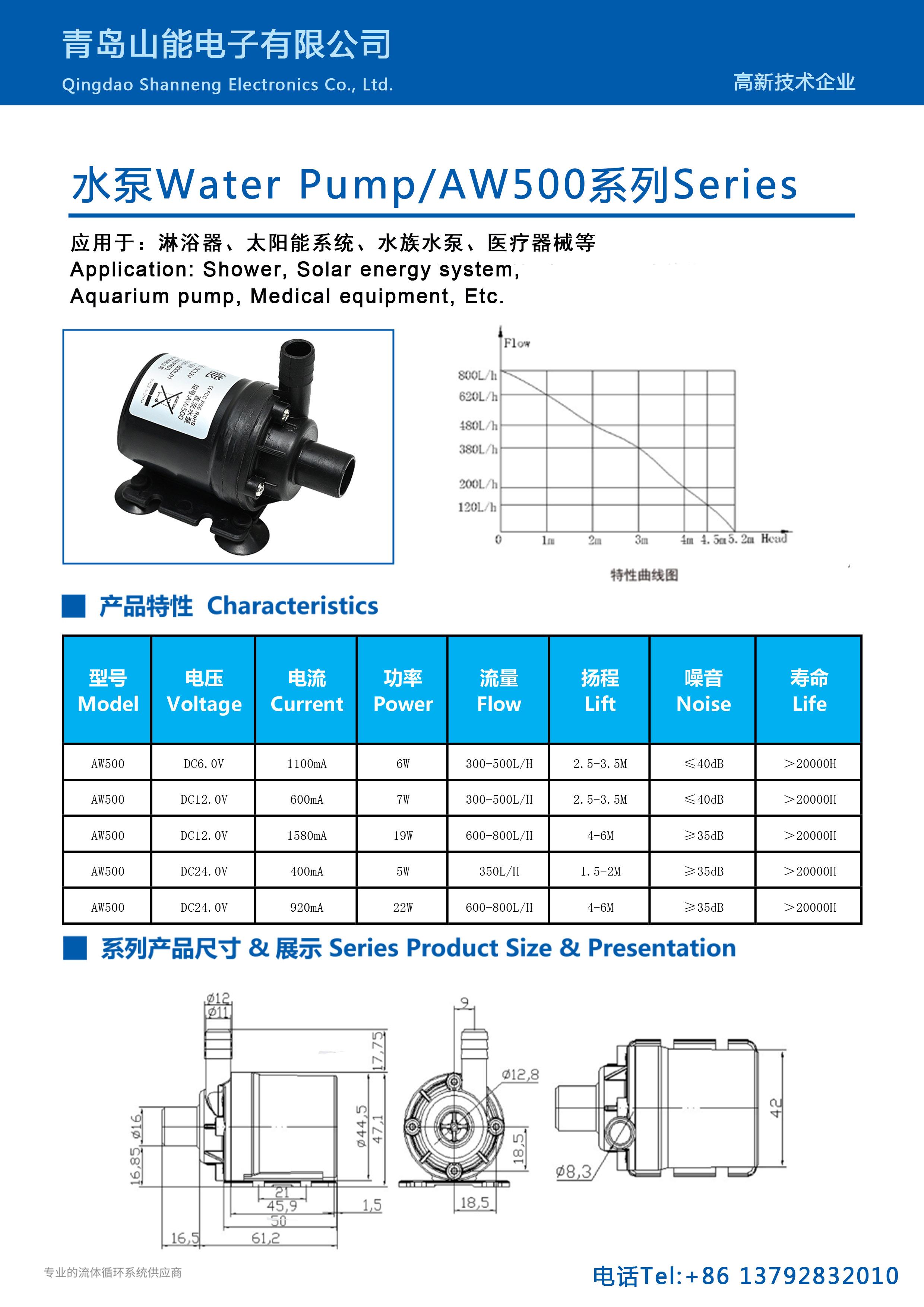

AW500 original datasheet (JPG) — specifications, curve and dimensions ↓
Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
