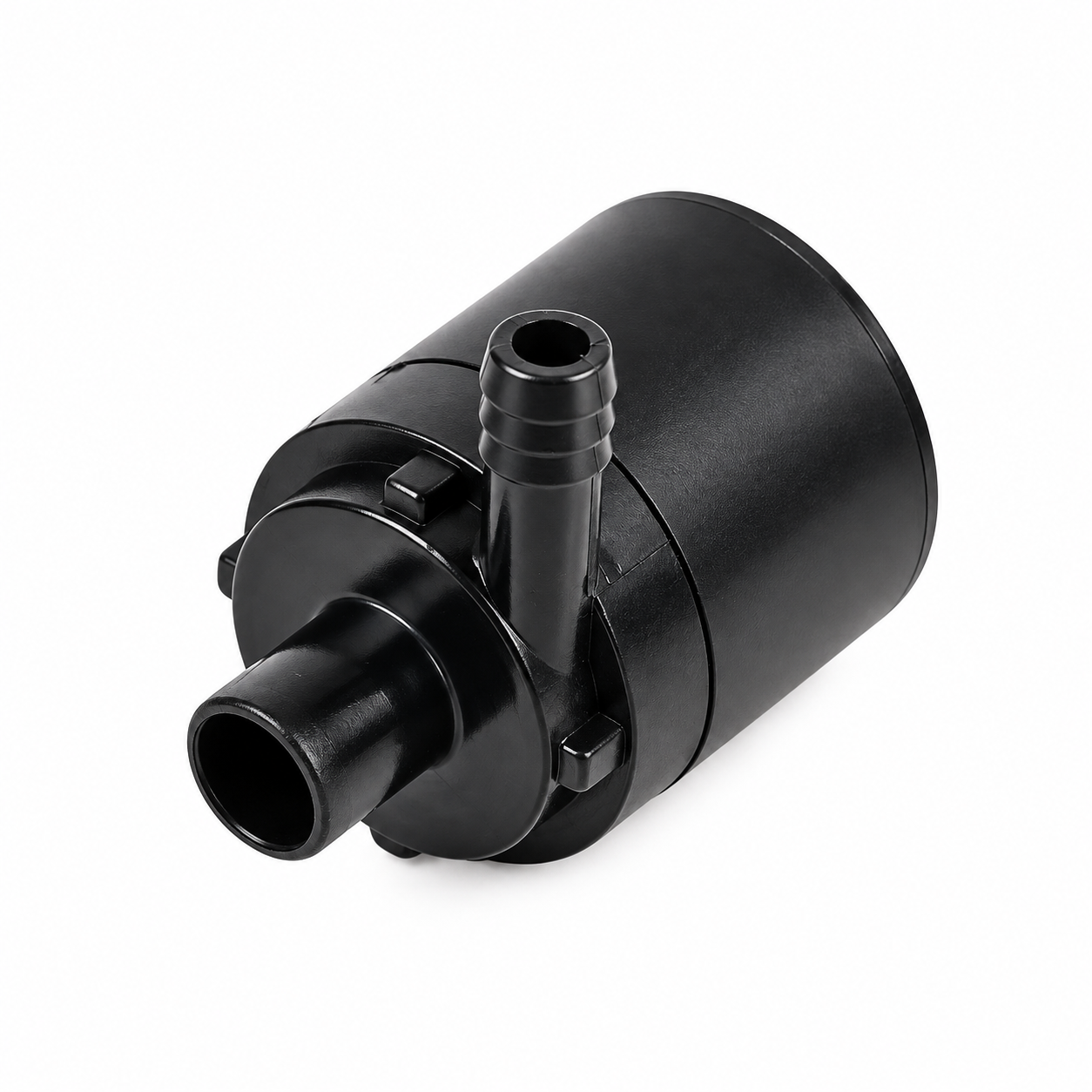

AW100 DC Water Pump
AW100 micro water pump with DC 6 V and DC 12 V configurations. The supplied sheet lists 150 L/h flow, 0.5–1 m head and 3 W power.
MODEL / AW100
AW100 DC Water Pump
AW100 micro water pump with DC 6 V and DC 12 V configurations. The supplied sheet lists 150 L/h flow, 0.5–1 m head and 3 W power.
The supplied Qingdao Ahead Electric datasheet lists solar fountains, coffee machines, water dispensers and water-heated beds. Confirm the working point and system requirements before selection.
Technical specifications
| Voltage | Current | Power | Flow | Head | Noise | Life |
|---|---|---|---|---|---|---|
| DC 6.0 V | 300 mA | 3 W | 150 L/h | 0.5–1 m | ≥40 dB | >20,000 h |
| DC 12.0 V | 300 mA | 3 W | 150 L/h | 0.5–1 m | ≥40 dB | >20,000 h |
Values and inequality signs are retained from the original sheet, including noise ≥40 dB. Both voltage configurations list 300 mA and 3 W as printed. Noise and lifetime test conditions and the configuration used for the series curve are not specified. Flow and head do not establish a simultaneous operating point.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawing below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
Contact us for specifications.
Protection functions
Contact us for specifications.
Applications
Technical documents

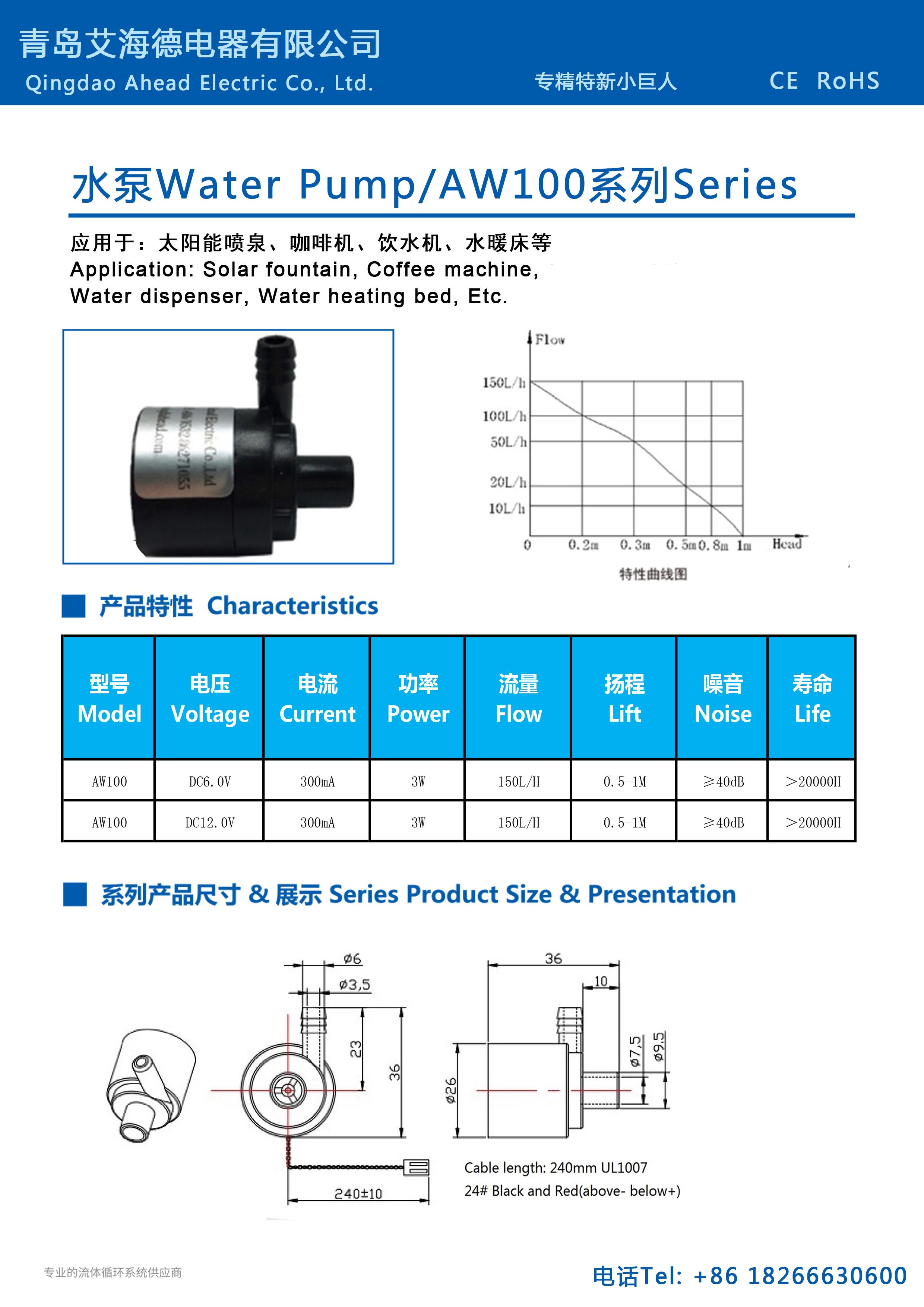

Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
BEFORE WE BEGIN
A clearer starting point.
Can you support OEM / ODM projects?+
Shan Neng provides OEM / ODM and custom development services. Share your requirements so the team can review feasibility for your project.
What information is needed to select a pump?+
Provide the medium, working flow and pressure or head, supply voltage, temperature, duty cycle, space and connection requirements.
What are the MOQ and sample lead time?+
MOQ, sample availability and lead time depend on the model and customization scope. Request a project-specific confirmation.
Can voltage and connectors be customized?+
Include the supply range, connector drawing and wiring requirements in your inquiry. The engineering team will review compatibility before confirming a configuration.
