ASV600 Micro Solenoid Valve
ASV600 solenoid valve assembly with DC 12 V and 24 V configurations. View the supplied electrical specifications, exhaust specification and dimension drawings.
MODEL / ASV600
ASV600 Micro Solenoid Valve
ASV600 solenoid valve assembly with DC 12 V and 24 V configurations. View the supplied electrical specifications, exhaust specification and dimension drawings.
The supplied datasheet lists electronic blood pressure monitors, memory pillows, breathing machines, inflatable shoes, atomizers and fragrance machines. Application suitability requires system-level confirmation.
Technical specifications
| Rated voltage | Working current | Power | DC resistance¹ | Exhaust speed² | Life |
|---|---|---|---|---|---|
| DC 12.0 V | ≤250 mA | 2.4 W | 65 ±10% | 1500 CC <4 s | >50,000 Times |
| DC 24.0 V | ≤250 mA | 2.88 W | 250 ±15% | 1500 CC <4 s | >50,000 Times |
Transcribed from the supplied ASV600 sheet. ¹ The resistance unit is not printed in the source. ² Exhaust is stated as “1500CC<4S”; test pressure and conditions are not specified. Life is stated in cycles (Times), not hours; test conditions and whether electrical values apply per coil or to the full assembly require confirmation.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawings. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
- Two rated-voltage configurations are listed in the source.
- Multi-valve assembly shown in the supplied product photograph.
Protection functions
Contact us for specifications.
Applications
Technical documents

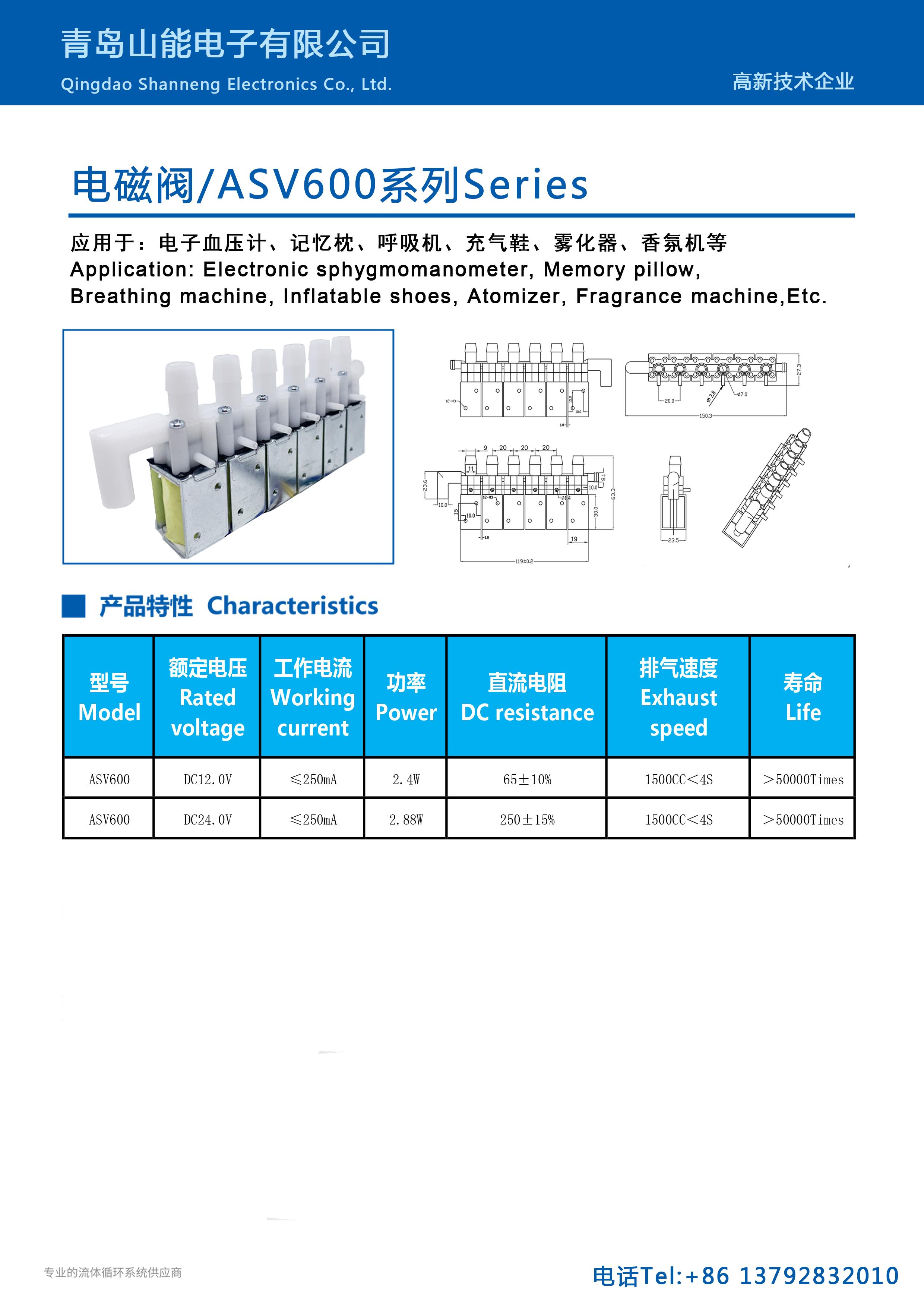

ASV600 original datasheet (JPG) — specifications and dimensions ↓
Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
