AMP503 Electromagnetic Air Pump
AMP503 micro air pump with DC 24 V, AC 110 V and AC 220 V configurations. The supplied sheet lists 16 W power and a pressure specification of ≥25 kPa.
MODEL / AMP503
AMP503 Electromagnetic Air Pump
AMP503 micro air pump with DC 24 V, AC 110 V and AC 220 V configurations. The supplied sheet lists 16 W power and a pressure specification of ≥25 kPa.
The supplied datasheet lists medical massage equipment, medical atomizers, diffusers, air mattresses and massage chairs. Confirm the selected electrical configuration and system requirements before integration.
Technical specifications
| Rated voltage | Working current | Power | Flow | Pressure | Noise | Life |
|---|---|---|---|---|---|---|
| DC 24 V | 1700 mA | 16 W | ≥20 L/min | ≥25 kPa | ≥40 dB | ≥10,000 h |
| AC 110 V | 300 mA | 16 W | ≥20 L/min | ≥25 kPa | ≥40 dB | >10,000 h |
| AC 220 V | 200 mA | 16 W | ≥20 L/min | ≥25 kPa | ≥40 dB | >10,000 h |
Values and inequality signs are retained from the original sheet, including noise ≥40 dB. Noise distance, lifetime test conditions, AC frequency and the electrical configuration used for the series curve are not specified. Flow and pressure entries do not establish a simultaneous operating point; confirm these details for your application.
| Working temperature | Contact us for specifications. |
|---|---|
| Connection size | Contact us for specifications. |
| Dimensions | See the original dimension drawings below. |
| Weight | Contact us for specifications. |
| Material | Contact us for specifications. |
| IP rating | Contact us for specifications. |
Product features
- DC 24 V, AC 110 V and AC 220 V configurations listed.
- The supplied sheet includes current, flow and noise curves and dimension drawings.
Protection functions
Contact us for specifications.
Applications
Technical documents

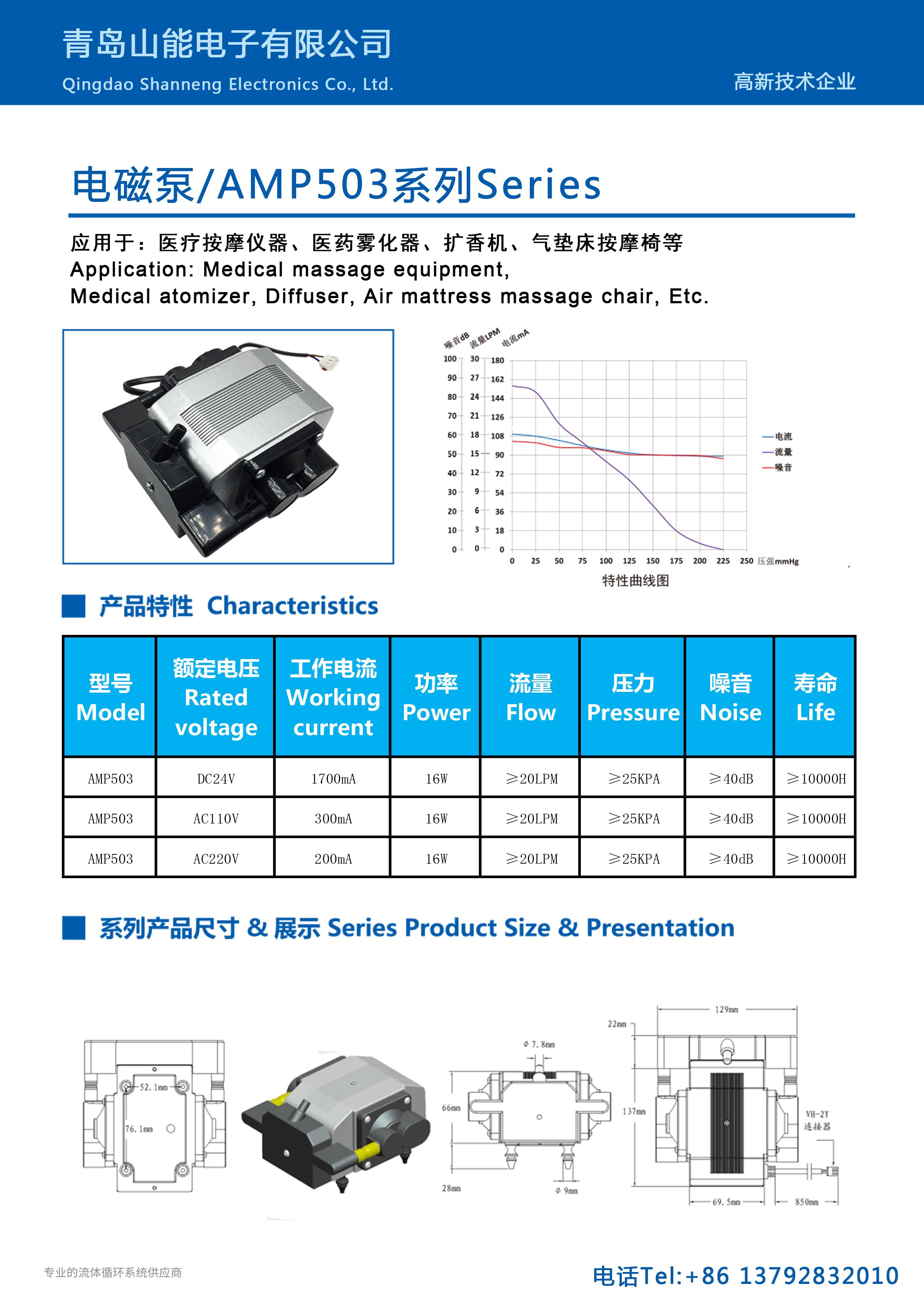

AMP503 original datasheet (JPG) — specifications, curves and dimensions ↓
Original datasheet & technical drawings
Open the original image to inspect the supplied specifications and drawings.
